Working principle of submerged pump

The vertical motor of the pump is fastened on the motor base by Bolts, and is fixed on the bottom plate through the elastic coupling and the direct transmission of the pump, the pump body, the intermediate pipe, the pump frame, the liquid outlet pipe and the pipe flange, the whole of the pump is installed on the container through the bottom plate.

Working principle of submerged pump

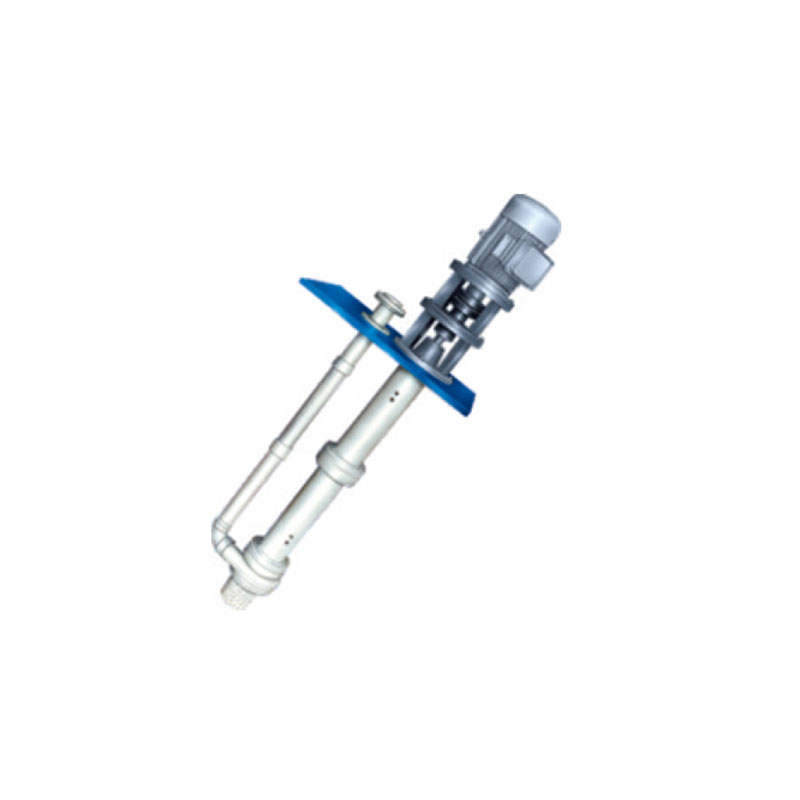

1. Traditional submerged pump, the vertical motor of the pump is bolted to the motor base, and is directly driven with the pump through the elastic coupling, the pump body, the intermediate pipe, the pump frame, the liquid outlet pipe and the pipe flange, the whole pump is fixed on the bottom plate and installed on the container through the bottom plate.

2, a new type of pump, pump motor is not in the liquid surface, but in the liquid surface. The motor is a submerged motor, which is connected with the pump wheel to form a whole potential liquid, so as to achieve the goal of delivering the medium to the target storage.
